Steam Jet Ejector and Liquid Ring Vacuum Pump Combination type Hybrid Vacuum System

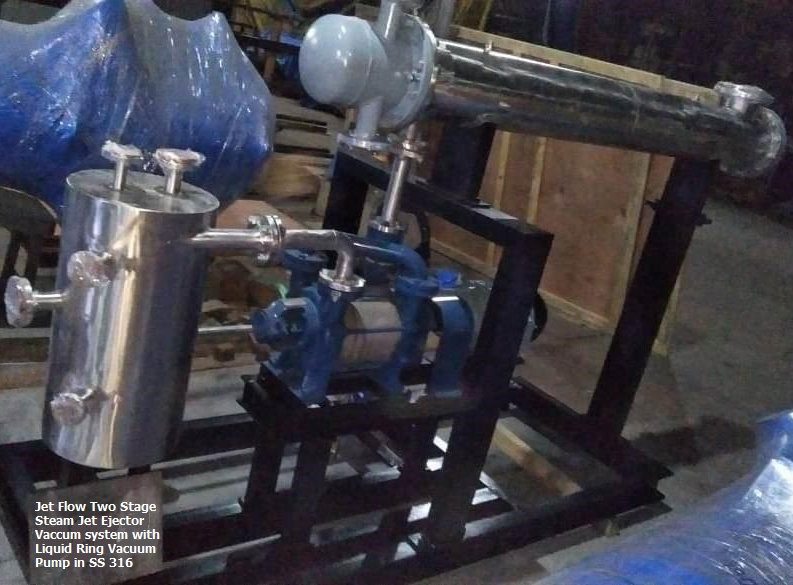

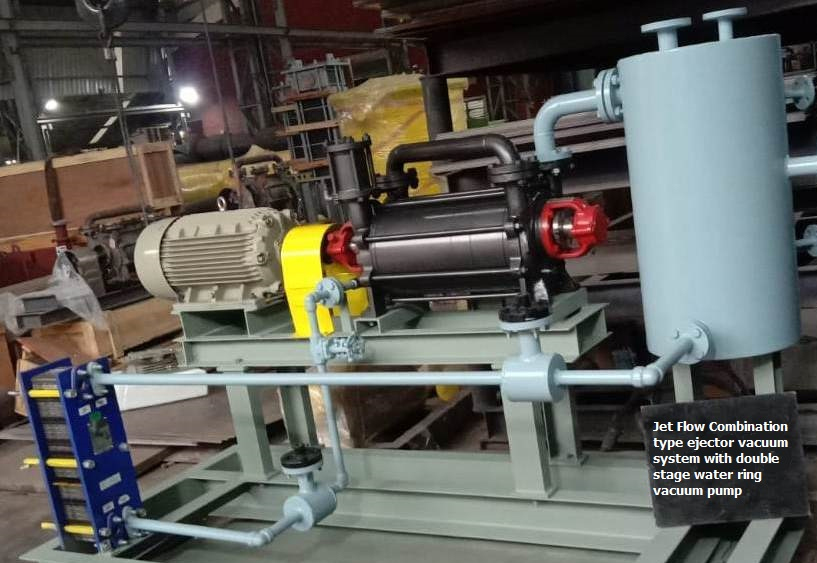

Jet Flow Steam Jet Ejector and Liquid Ring Pump Combination type Hybrid Vacuum Systems are getting popular in major Chemical, Soap, Food, Edible oil sectors. A typical combination of steam jet ejector system followed by inter-condenser and liquid ring vacuum pump. This type of combination system can achieve vacuum as high as 0.05 Torr. It can be configured as single or multi-stage ejectors, single or two-stage liquid ring vacuum pumps and inter-condenser. Jet Flow Hybrid Ejector systems are designed to operate at the same capacities and suction pressures as conventional steam jet ejector systems.

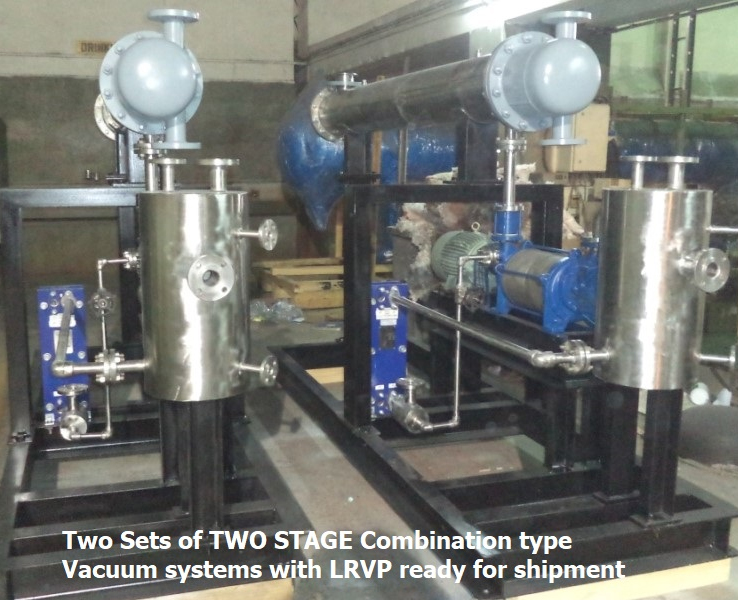

Jet Flow combination type vacuum systems provide a solution for high vacuum operations. They are versatile in handling both wet and dry loads, can be supplied with low level skid mounted packages with instrumentation and with closed loop seal water re-cycle system for vacuum pumps for the total reduction of effluent. Jet Flow combination type vacuum systems major applications in distillation, evacuation, drying, evaporation, cooling ete.
